To convert color palette files click the .pal ⇄ .wspal Converter button on the main menu.
Converting .pal to .wspal (GRX to WSV3)
First, select the .pal to .wspal converter tab. Next, click browse and select the .pal file you wish to convert. Once a file is loaded and table name specified, click import to begin the conversion. Press the save button to save the .wspal file.

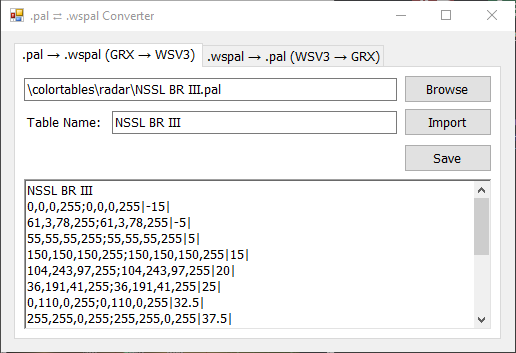

Figure 1: .pal to .wspal converter
Converting .wspal to .pal (WSV3 to GRX)
First, select the .wspal to .pal converter tab. Next, click browse and select the .wspal file you wish to convert. Then select the product, units, and specify the step. The offset, scale, and decimals can also be modified but are not required. Once a file is loaded and product details specified, click import to begin the conversion. Press the save button to save the .pal file.

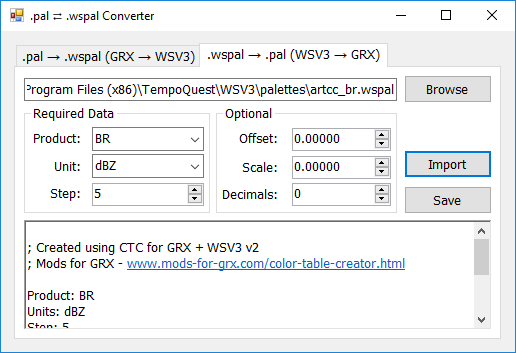

Figure 2: .wspal to .pal converter
